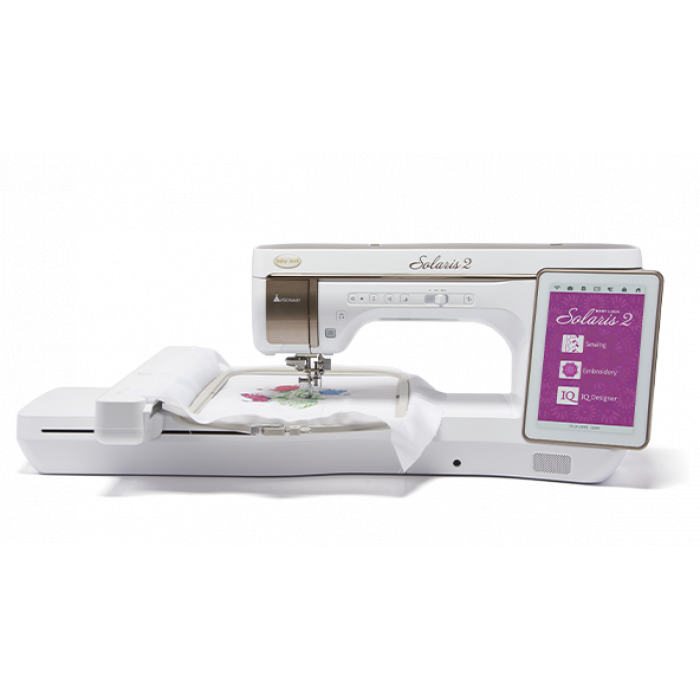

(A) Baby Lock Solaris 2 Sewing and Embroidery Machine

Call For Pricing

| /


(A) Baby Lock Solaris 2 Sewing and Embroidery Machines

 Technology Features
• WXGA IPS TFT LCD Color Touch Screen Technology
o Shows 16,777,216 colors
o Measures 10.1" diagonally (800 x 1280 pixels)
o Displays Clock and Date
• 3x faster processing speed
• Mpeg-4 movie/video play function
o Video display size 6.2" diagonally
o Exclusive 1GB Memory Storage for video
• IQ VisionaryTM Projector
• Projects your embroidery design in a 3" x 5" (7.6 cm x 12.7 cm) area
• Advance and select stiches from projection using the Dual
Function Stylus
• Select background color from projection using Dual Function
• Set width, length and left/right shift
• Projection of Guide Beam, Grid and Needle Beam for precision
alignment of stitches
o Main and Sub line Options
o 3 Color Options (Red, White, Green)
o Line length and single point options
o Horizontal and vertical position options
o 45, 60 and 90 Degree angles
o Grid adjustable up to from 5mm to 30mm (3/16" x 1-3/16")
o 4 adjustment levels on projection light
• NeedleCam™ Digital Camera for embroidery and sewing
positioning with faster scanning.
• Precise Touch Positioning™ using NeedleCam
• Camera detecting buttonhole foot with stabilization plate
o Creates up to 45mm buttonhole
• IQTM Designer with paper holding frame for image scanning
o LCD screen size can be enlarged to 1280 x 800 pixels
o Will automatically create an embroidery pattern from a JPEG
o Drawing area is 3-3/4" x 5-11/16" (96mm x 145mm)
o 90 Preloaded open, closed and region shapes
o Able to select different line colors and fill colors
o 18 Different stitch patterns: running, bean, satin, no outline,
chainstitch, blanket, blindhem, candlewicking and 10
decorative stitch outlines
o 45 Different fill patterns: regular fill, no fill, stipple, and 42
decorative pattern fills
o Duplicate and paste editing preloaded shapes
o Adjust line, fill and stippling width, length and density
o Light fill or regular fill for decorative fill patterns
o Undersewing options
o Undo and Redo options
o Outline stamp shape creation for Trapunto techniques
• 2 scanning modes
o Fine - For illustrations
o Standard - For line drawings
• Enhanced Stadium Lighting for 13" area of brighter true color LED
lighting on the needle and work area with 5 settings
• 2 (Type A) USB 2.0 drives to connect a mouse, Flash drives, and
CD-ROM drives
• SD Card Slot
• Wireless Wi-LAN Function data transfer technology (Requires
Palette 11 version software and/or free Intuition Positioning App)

 NeverMiss™ Automatic Advanced Threading System
• Digital Dual-Feed System ensures utmost fabric control when
feeding layers or difficult fabric types
• Advanced Pivoting Feature and Automatic Fabric Sensor System
• Automatic sensors
o Thread tension control makes tension adjustments for
accurate stitches
o Upper and lower thread sensors on/off
o Upper and lower thread sensors to alert when threads run out
o On-screen hoop sensor to recommend size of hoop
• Embroidery and sewing speed up to 1,050 spm
• Precise tracking system on embroidery carriage
• Resume mode for Embroidery and IQ Designer
• Programmable shutoff capabilities
• Eco power mode
Embroidery Capabilities
• 865 Embroidery designs built-in including
o 355 Baby Lock exclusives
o 35 Sewlebrity designs
o 15 Buttonhole embroidery designs in 5 sizes (75 total)
o 15 Buttonhole embroidery frame designs
o 244 Large decorative stitch designs
o 30 Quilting Border Patterns in 3 categories
o 40 Couching patterns
• 140 Frame combinations
• 32 font styles including
o Extra-large striped alphabet and characters (100 total)
o Extra-large block alphabet and characters (100 total)
o Exclusive script alphabet and characters (70 total)
o Large floral block alphabet (64 total)
o Large vine alphabet (60 total)
o Greek alphabet (24 total)
• Embroiders up to 10 5/8" x 16" (272mm x 408mm) embroidery field
• 10 5/8" x 16" hoop has new locking mechanism and silicone side
grips for slip-free fabric support
• Memory capacity approximately 10MB
• Reads embroidery designs with a stitch capacity of up to 750,000
stitches per design and 127 color changes
• Color Visualizer with favorite color selections
• WXGA IPS TFT Color LCD Touch Screen shows
o Design placement using drag/drop and slide/scroll/pinch
capacitive capabilities
o Enhanced Realistic Preview
o Screen brightness with 6 settings
o Design previews can be enlarged 400%
o Needle positioning grid and hoop selections
o Needle position image can be enlarged 200%
o Estimated embroidery time display and stitch count
o Embroidery progress bar
o Stitch simulator
o Needle advancement (1, 10, 100, or 1000 stitch increments)
o Measurements displayed in inches or metrics
o Color separation
o Thread color indicator
o On-screen hoop size indicator
o Low bobbin thread indicator with option to sew reinforcing
stitches in embroidery mode
o 300 color names
o Screen saver customization
o Thumbnail images in 3 viewing sizes, defaults at 150%
• 9-Point trial check points
• Starting point key for instant alignment of characters or patterns

• Alternate bobbin case for pre-wound bobbins
• Customize embroidery pattern and thumbnail background colors
(66 options)
• On-screen grid
• Cuts jump stitches (with on/off capability)
• Embroidery frame clearance setting for easy bobbin changes
• Embroider without removing the foot control
• Compatible with optional W+ Needle Beam Foot and mouse
Embroidery Editing Capabilities
• Combine embroidery designs on screen
• Character/text array function
• Character spacing
• Multi-line text with justification options
• Character insert and group edit capabilities
• Change fonts on letters or words after the design is set
• 0.1°, 1°, 10°, and 90° pattern rotation
• Enhanced design enlargement (up to 200%) and reduction (down
to 60%) capabilities
• Design duplication
• Multiple design selection capabilities
• Automatic appliqué
• Automatic basting
• Add automatic stippling, echo stitching, and decorative fill
patterns around embroidery designs
o Set the distance, spacing and frame size
• Mirror imaging
• Change color selections within designs
• Enhanced color sorting to optimize sewing order
• Monochrome option for embroidery designs
• Programmable custom thread color selection
• 14 Major thread brands color palettes built-in
Advanced Sewing Capabilities
• 864 Built-in stitches including
o 154 Utility including 15 one-step buttonhole styles and 1 fourstep custom buttonhole
o 527 Decorative
o 79 Decorative satin
o 20 Satin
o 21 Cross
o 63 Combinable Utility stitches
o 3 Hand-look Quilting
• 4 Built-in alphabets
• 30 Quilting stitches offer 57 needle position options
• Stitch length 0.0mm - 5.0mm
• 2 Basting stitch options: Regular 5mm and free-motion
• Maximum Utility stitch width 7mm
• Utility stitch editing capabilities
• 5 Memory settings for each Utility stitch
• Decorative stitch editing capabilities
o Edit and combine Character Decorative stitches
o Character/Decorative stitch memory equaling 1MB
o Satin stitch elongation
o Mirror-image
o Back to the beginning key
o Single and repeat mode
o Length width proportional linking key
• Sew Utility and Decorative stitches while embroidery arm is
• Specify end-point for stitch line with capability to end with a
completed pattern
Item# LBSP-BLSA2 7.20
 Optional Accessories
• Love of Sewing Membership (LOSML1)
• Baby Lock Palette 11 Software (ECS11)
• Trolley Set (BLMTXL-BK)
• Solaris 30 foot kit (BLSAFTKIT)
• Extension table (BLSA-ET)
• Machine Cover (BL-COVERXL)
• Multifunction Foot Control (BLMA-MFC)
• W+ Needle Beam Foot (BLTY-EF)
• Embroidery Positioning Sheets (BLSO-EPS)
• Embroidery Bobbins (BLG-BOB)
• Baby Lock Stabilizer Precut Pack (BLT103-PPC)
• Baby Lock Stabilizer Trial Pack (BLSTP)
• Baby Lock Stabilizer Value Pack (BLS20KT)
• Baby Lock Ruler Foot (BL-HOTRF)
• Baby Lock Ruler Kits (BLRK-HSLA, BLRK2-HSLA, BLRK3-HSLA)
• Magnifying lens (BLMA-ML)
• Dynamic Walking Foot Set (BLSA-WF)
• Additional embroidery hoops
 o Magnetic Sash Frame 14" x 7" (360mm x 180mm) (BLSA-MH)
o 10-5/8" x 16" (272mm x 408mm) hoop (EF99)
o 10-5/8" x 10-5/8" (272mm x 272mm) hoop (EF101)
o 9-1/2" x 14" (240mm x 360mm) hoop (EF95)
o 9-1/2" x 9-1/2" (240mm x 240mm) hoop (EF97)
o 8" x 12" (200mm x 300mm) hoop (EF92)
o 6-1/4" x 10-1/4" (160mm x 260mm) hoop (EF81)
o 8" x 8" (200mm x 200mm) hoop (EF91)
o 6" x 6" (150mm x 150mm) hoop (BLMA-150)
o 5" x 7" (130mm x 180mm) hoop (EF75)
o 4" x 4" (100mm x 100mm hoop (EF74)
o 1" x 2-1/2" (20mm x 60mm) hoop (EF73)
o Continuous Border Hoop 4" x 7" (100mm X 180mm)
o Continuous Border Hoop 4" x 12" (100mm X 300mm)
• Embroidery Grids
o 10-5/8" x 16" (272mm x 408mm) grid sheet (EF100)
o 10-5/8" x 10-5/8" (272mm x 272mm) grid sheet (EF102)
o 9-1/2" x 9-1/2" (240mm x 240mm) grid sheet (EF98)
o 5" x 7" (130mm x 180mm) grid sheet (EF79)
o 4" x 4" (100mm x 100mm) grid sheet (EF78)
•• Automatic drop feed on screen
• Lock key for Utility and Decorative stitches
• Reinforcement priority settings
• Lateral and diagonal feeding
• Variable needle positions
• Fully automatic built-in darning
• Twin needle settings
 Convenient Sewing Features
• Larger sewing bed and workspace with 13.1" to the right of the
• Frosted surface finish on the machine bed
• Convenient one-touch buttons for
o Start/Stop
o Reverse sewing
o Reinforcement key
o Needle up/down
o Thread cutter
o Automatic presser foot lift
o Automatic needle threading
• Sewing speed control doubles as width control
• Quick-Set, Top-Loading bobbin with sensor
• Quick-Set Independent bobbin winding system with
o 5 Adjustable speed settings
o 5 Variable bobbin filling settings
• One finger removable needle plate for easy access cleaning
• Ergonomic 3-position, adjustable knee lift with extra high presser
foot lift - 10mm Automatic and 13mm Manual
• Programmable 3-step needle up/down
• Adjustable volume with 5 settings
• Automatic thread cutter (with on/off capability)
• Needle plate with scale in inches and centimeters and additional
guideline markings
• Free arm
• Foldable king two-spool thread stand attaches magnetically to
machine lid
• Two accessory storage compartments in sewing tray
• Enhanced Accessory Storage Box with 3 interchangeable trays
• Compatible with optional Multi-Function Foot Control
 Instruction and Help Resources
• Built-in Instructions and Reference Manual
• Built-in Operational Guide with up to 40 help topics and
42 built-in videos
• Built-in Sewing Application Guide
• Built-in Help Messages
• Embroidery Stitch Count System – SCS
• Capability to save settings screen images
 Downloadable Software
• Your Solaris will stay current with future upgrades/updates via USB
or WLAN connection.
 Additional Information
• Language conversion capabilities (12 languages)
• Machine Hoop required space clearance 32" from front to back
• Warranty (25 years limited, 10 years parts, 5 years computer circuit, 5 years electrical, 1 year labor)
