(A)Baby Lock Solaris Sewing and Embroidery Machine

$0.00

SKU: BLSA
We currently have 1 in stock.

SOLD IN STORE ONLY

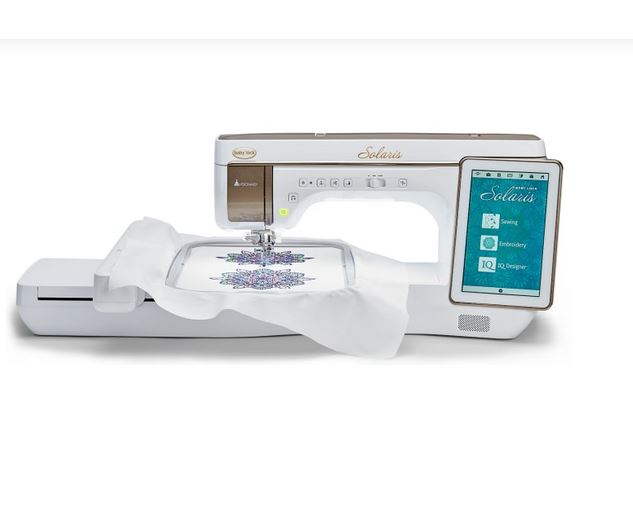

Put your projects in an entirely new light with the Baby Lock Solaris. With the revolutionary new IQ Visionary™ Technology, you’ll see how your design looks before you stitch it out! Solaris’ built-in projector displays your stitches and embroidery patterns on fabric in vibrant full color for perfect placement every time.

Technology Features

• WXGA IPS TFT LCD Color Touch Screen Technology

o Shows 16,777,216 colors o Measures 10.1" diagonally (800 x 1280 pixels)

o Displays Clock and Date

• 3x faster processing speed

• Mpeg-4 movie/video play function o Video display size 6.2" diagonally o Exclusive 1GB Memory Storage for video

• IQ VisionaryTM Projector

• Projects your embroidery design in a 3" x 5" area

• Advance and select stiches from projection using the Dual Stylus

• Set width, length and left/right shift

• Projection of Guide Beam, Grid and Needle Beam for precision alignment of stitches

o Main and Sub line Options

o 3 Color Options (Red, White, Green)

o Line length Options

o Height and Width position options

o 45, 60 and 90 degree Angles

o Grid adjustable up to from 5mm to 30mm

o 4 adjustment levels on projection light

• NeedleCam™ Digital Camera for embroidery and sewing positioning with faster scanning.

• Precise Touch Positioning™ using NeedleCam

• Camera detecting buttonhole foot with stabilization plate

o Creates up to 45mm buttonhole

• IQTM Designer with paper holding frame for image scanning o LCD screen size can be enlarged to 1280 x 800 pixels

o Will automatically create an embroidery pattern from a JPEG image

o Drawing area is 3-3/4" x 5-11/16" (96mm x 145mm)

o 90 Preloaded open, closed and region shapes

o Able to select different line colors and fill colors

o 18 Different stitch patterns: running, bean, satin, no outline, chainstitch, blanket, blindhem, candlewicking and 10 decorative stitch outlines

o 33 Different fill patterns: regular fill, no fill, Stipple inside or around a shape, and 30 decorative pattern fills

o Duplicate and paste editing preloaded shapes

o Adjust line, fill and stippling width, length and density properties

o Undersewing options

o Undo and Redo options

o Outline stamp shape creation for Trapunto techniques

• 2 scanning modes

o Fine - For illustrations

o Standard - For line drawings

• Enhanced Stadium Lighting for 13" area of brighter true color LED lighting on the needle and work area with 5 settings

• 2 (Type A) USB 2.0 drives to connect a mouse Flash drives, Hub and CD-ROM drives

• SD Card Slot

• Wireless Wi-LAN Function data transfer Technology (Requires Palette 11 version software)

• NeverMiss™ Automatic Advanced Threading System

• Digital Dual-Feed System ensures utmost fabric control when feeding layers or difficult fabric types

Features and Specifications

Advanced Pivoting Feature and Automatic Fabric Sensor System
• Automatic sensors
o Thread tension control makes tension adjustments for accurate stitches
o Upper and lower thread sensors on/off
o Upper and lower thread sensors to alert when threads run out
o On-screen hoop sensor to recommend size of hoop
• Embroidery and sewing speed up to 1,050 spm
• Precise tracking system on embroidery carriage
• Resume mode
• Programmable shutoff capabilities
• Eco power mode


Embroidery Capabilities


• 740 Embroidery designs built-in including
o 355 Baby Lock exclusives
o 35 Sewlebrity designs
o 15 Buttonhole embroidery designs in 3 sizes (45 total)
o 15 Buttonhole embroidery frame designs
o 240 Large decorative stitch designs
o 10 Quilting Border Patterns
• 140 Frame combinations
• 31 font styles including
o Extra-large striped alphabet and characters (100 total)
o Extra-large block alphabet and characters (100 total)
o Exclusive script alphabet and characters (70 total)
o Large floral block alphabet (64 total)
o Large vine alphabet (60 total)
o Greek alphabet (24 total)
• Embroiders up to 10 5/8" x 16" (272mm x 408mm) embroidery field
• 10 5/8" x 16" hoop has new locking mechanism and silicone side grips for slip free fabric support
• Memory capacity approximately 9MB
• Reads embroidery designs with a stitch capacity of up to 850,000 stitches per design
• Color Visualizer with pinnable color selections
• WXGA IPS TFT Color LCD Touch Screen shows
o Design placement using drag/drop and slide/scroll/pinch capacitive capabilities
o Enhanced Realistic Preview
o Screen brightness with 5 settings
o Design previews can be enlarged 200%
o Needle positioning grid and hoop selections
o Needle position image can be enlarged 200%
o Estimated embroidery time display and stitch count
o Embroidery progress bar
o Stitch simulator
o Needle advancement (1, 10, 100, or 1000 stitch increments)
o Measurements displayed in inches or metrics
o Color separation
o Thread color indicator
o On-screen hoop size indicator
o Low bobbin thread indicator
o 300 color names
o Screen saver customization
o Thumbnail images in 3 viewing sizes, defaults at 150%

Starting point key for instant alignment of characters or patterns
• Alternate bobbin case for pre-wound bobbins
• Customize embroidery pattern and thumbnail back ground colors (66 options)
• On-screen grid
• Cuts jump stitches (with on/off capability)
• Embroidery frame clearance setting for easy bobbin changes
• Embroider without removing the foot control
• Compatible Ready for Optional W+ Needle Beam Foot and Mouse
Embroidery Editing Capabilities
• Combine embroidery designs on screen
• Character/text array function
• Character spacing
• Multi-line text with justification options
• Character insert and group edit capabilities
• Change fonts on letters or words after the design is set
• 0.1°, 1°, 10°, and 90° pattern rotation
• Enhanced design enlargement (up to 200%) and reduction (down to 60%) capabilities
• Design duplication
• Multiple design selection capabilities
• Automatic appliqué
• Automatic basting
• Add automatic stippling and echo stitching around embroidery designs
o Set the distance, spacing and frame size
• Mirror imaging
• Change color selections within designs
• Enhanced color sorting to optimize sewing order
• Monochrome option for embroidery designs
• Programmable custom thread color selection
• 14 Major thread brands color palettes built-in
Advanced Sewing Capabilities
• 861 Built-in stitches including
o 151 Utility including 15 one-step buttonhole styles and 1 four-step custom buttonhole
o 527 Decorative
o 79 Decorative satin
o 20 Satin
o 21 Cross
o 63 Combinable Utility stitches
• 4 Built-in alphabets
• 30 Quilting stitches offer 57 needle position options
• Stitch length 0.0mm - 5.0mm
• 2 Basting stitch options: Regular 5mm and free-motion
• Maximum Utility stitch width 7mm
• Utility stitch editing capabilities
• 5 Memory settings for each Utility stitch
• Decorative stitch editing capabilities
o Edit and combine Character Decorative stitches
o Character/Decorative stitch memory equaling 1MB
o Satin stitch elongation
o Mirror-image
o Back to the beginning key
o Single and repeat mode
o Length width proportional linking key
• Sew Utility and Decorative stitches while embroidery arm is attached

Automatic drop feed on screen
• Lock key for Utility and Decorative stitches
• Reinforcement priority settings
• Lateral and diagonal feeding
• Variable needle positions
• Fully automatic built-in darning
• Twin needle settings
Convenient Sewing Features
• Larger sewing bed and workspace with 13.1" to the right of the needle
• Frosted surface finish on machine bed
• Convenient one-touch buttons for
o Start/Stop
o Reverse sewing
o Reinforcement key
o Needle up/down
o Thread cutter
o Automatic presser foot lift
o Automatic needle threading
• Sewing speed control doubles as width control
• Quick-Set, Top-Loading bobbin with sensor
• Quick-Set Independent bobbin winding system with
o 4 Adjustable speed settings
o 5 Variable bobbin filling settings
• One finger removable needle plate for easy access cleaning
• Ergonomic 3-position, adjustable knee lift with extra high presser foot lift - 10mm Automatic and 13mm Manual
• Programmable 3-step needle up/down
• Adjustable volume with 5 settings
• Automatic thread cutter (with on/off capability)
• Needle plate with scale in inches and centimeters and additional guideline markings
• Free arm
• Foldable king two spool thread stand attaches magnetically to machine lid
• Two accessory storage compartments in sewing tray
• Enhanced Accessory Storage Box with 3 interchangeable trays
• Compatible Ready for Optional Multi-Function Foot Control
Instruction and Help Resources
• Built-in Instructions and Reference Manual
• Built-in Operational Guide with up to 40 help topics and
33 built-in videos (videos available via downloadable update)
• Built-in Sewing Application Guide
• Built-in Help Messages
• Embroidery Stitch Count System – SCS
• Capability to save settings screen images
Downloadable Software
• Your Solaris will stay current with future upgrades/updates via USB.
Additional Information
• Language conversion capabilities (12 languages)
• Machine Hoop required space clearance 32" from front to back


• Warranty

25 years limited

10 years parts

5 years computer circuit

5 years electrical

1 year labor

Included Accessories

Dual Stylus and Holder
• Adjustable knee lifter with 3-position handle
• 14 Presser feet
o Digital Dual-Feed
System Foot
o Embroidery foot "W"
o General purpose zigzag
o Blind stitch
o Camera Detecting
Buttonhole Foot with
stabilization plate
o Button fitting
o Free-motion open toe quilting
o Free-motion quilting
o Free-motion echo
o Monogramming
o Overcasting
o 1/4" Quilting foot with a guide
o Straight stitch foot
o Zipper
• Easy-lock accessory case for presser foot storage with 3 interchangeable trays
• 2 Thread king spool stand for larger cones
• Straight stitch needle plate
• Bobbin case and cover for embroidery
• Bobbin Covers with and without markings
• Alternate bobbin case for use with pre-wound bobbins
• Bobbin center pin
• Embroidery bobbin thread
• Bobbins
• Embroidery Positioning Stickers (2 Sheets)
• White needle calibration stickers
• Multi-position screwdriver
• Presser foot adaptor
• Seam ripper
• Scissors
• Eyelet Punch
• Spool net
• Foot control
• Twin needle
• Scanning frame with Magnets
• Embroidery hoops
o 10 5/8" x 16"
(272mm x 408mm)
o 9 1/2" x 9 1/2"
(240mm x 240mm)
o 5" x 7"
(130mm x 180mm)
o 4" x 4"
(100mm x 100mm

Click Here for Embroidery Manual

Click Here for Sewing Manual

Click Here for Quick Start Quide

Click Here for Machine Update 1.23

Click Here for Spec Sheet

Click Here for Embroidery Design Guide
